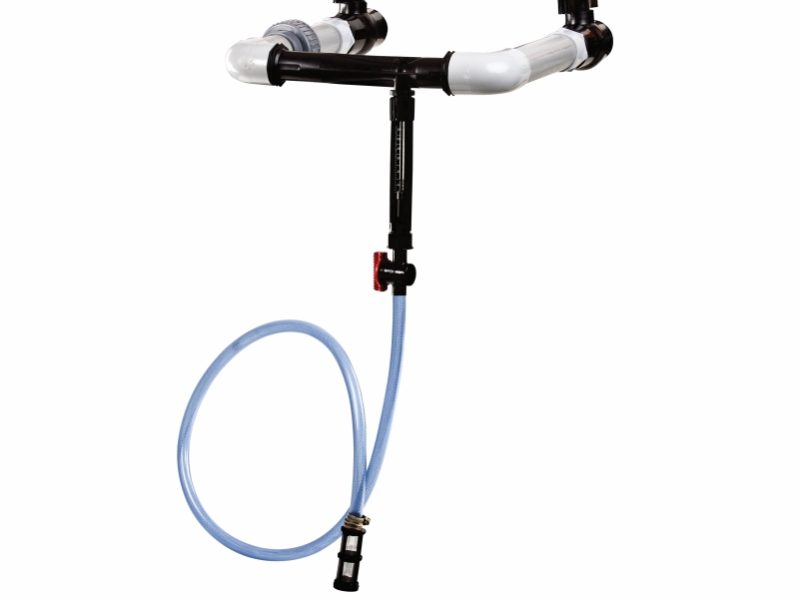

Venturi Injector

Venturi Injector

Features and Benefits:

  • Venturi Injectors controlled / adjustable suction of fertilizer.
  • Fertigation is based on proportionate principle.
  • Uniform application of fertilizer.
  • In-built check valve for protecting the injected liquid against back flow.
  • With rotometer one can measure / read accurate suction of fertilizer injection rate.
  • Rotometer available in all sizes.
  • Saves energy & man power.
  • Delivers plant nutrients directly into the crop root zone.
  • Can be used with a large variety of chemicals.

Applications:

  • Delivers plant nutrients directly into the wetted zone.
Technical Specifications:

Injector Selection Guide
Size
In / Out
Efficiency(P) required to
Initiate suction
Motive flow (Lit/Hr) through injector
2 @ 2.50 kg/cm2
InjectionCapacity
Lit/Hr
3/4”
30%
1525
40
1”
25%
4645
78
1 ½”
25%
7425
320
2”
25%
7345
330
2”
20%
20100
450
