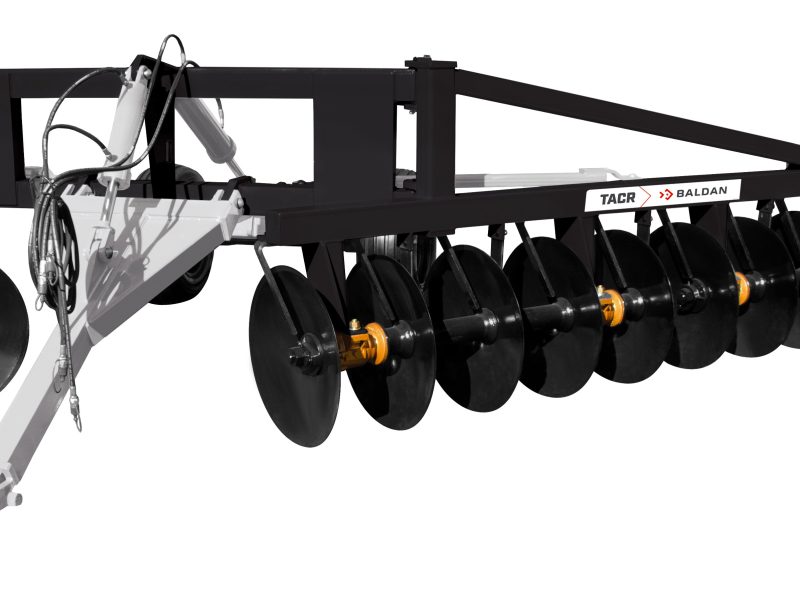

TACR Disc Plough
Developed to raise terraces and reduce soil erosion, it has 26’’ discs and tapered bearing bearings with oil and/or grease bath that increase lubrication performance of the equipment.
TECHNICAL SPECIFICATIONS
| NR of Discs | Terrace Dimension mm |
Approximate Weight Kg |
Tractor Power Hp |
Transport Width mm |
|---|---|---|---|---|
| 14 | 900 x 5450 | 1885 | 90-100 | 3028 |
| 16 | 900 x 6130 | 2028 | 104-112 | 3028 |
| 18 | 900 x 6820 | 2170 | 117-126 | 3028 |
| 20 | 900 x 7510 | 2390 | 130-140 | 3028 |
| 22 | 900 x 8200 | 2510 | 143-154 | 3028 |
| Disc Spacing mm |
Working Depht mm |
Axle Diameter Ø |
Discs Diameter Ø |
Wheels Set |
|---|---|---|---|---|
| 400 | 50-300 | 1.5/8’’ | 26’’ | Single |
