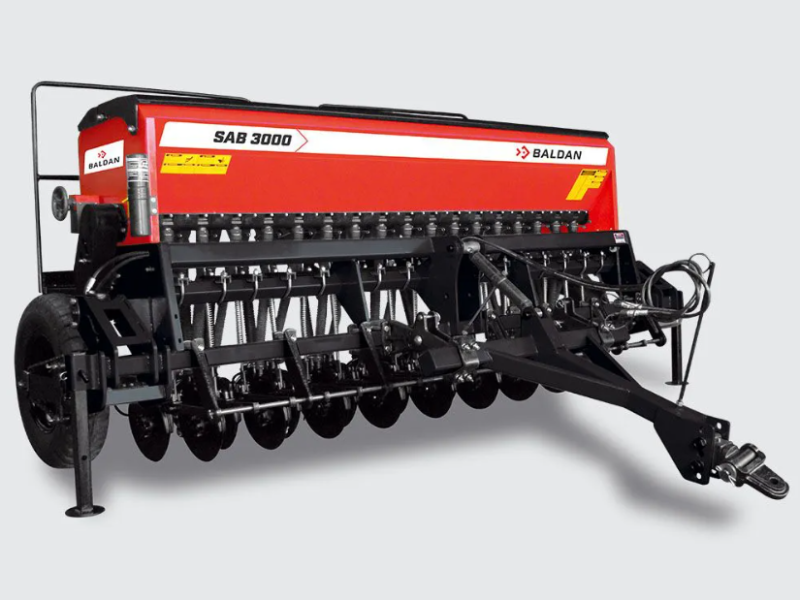

SA 3000 Seed Drill
Drag Type Seed Drill Baldan
It has a helicoidal wheel for millimetric regulation of the rotor with greater possibility of variations in seed dispensing.
It has a fertilizer and seed tank in carbon steel with epoxy paint and seed cover system through chains with hoops and free access non-slip platform.
Technical Specifications
| Model | SAB 2000 | SAB 2300 | SAB 2600 | SAB 3000 |
| Nr. of discs | 11 | 13 | 15 | 17 |
| Fertilizer tank capacity (L) | 333 | 366 | 423 | 468 |
| Seed tank capacity (L) | 182 | 210 | 241 | 297 |
| Fine seed tank capacity (L) | 35 | 40 | 47 | 54 |
| Total length (mm) | 2228 | 2228 | 2228 | 2228 |
| Total height (mm) | 1952 | 1952 | 1952 | 1952 |
| Total width (mm) | 2930 | 3270 | 3610 | 3950 |
| Useful width (mm) | 1870 | 2210 | 2550 | 2890 |
| Tractor Coupler | Drag | Drag | Drag | Drag |
| Approximate Power (Hp)* | 55 | 65 | 75 | 85 |
| Wheel set | Tire 650x16x10 belts | Tire 650x16x10 belts | Tire 650x16x10 belts | Tire 650x16x10 belts |
| Minimum spacing between lines (mm) | 170 |
| Assembly | Tubular Structure |
