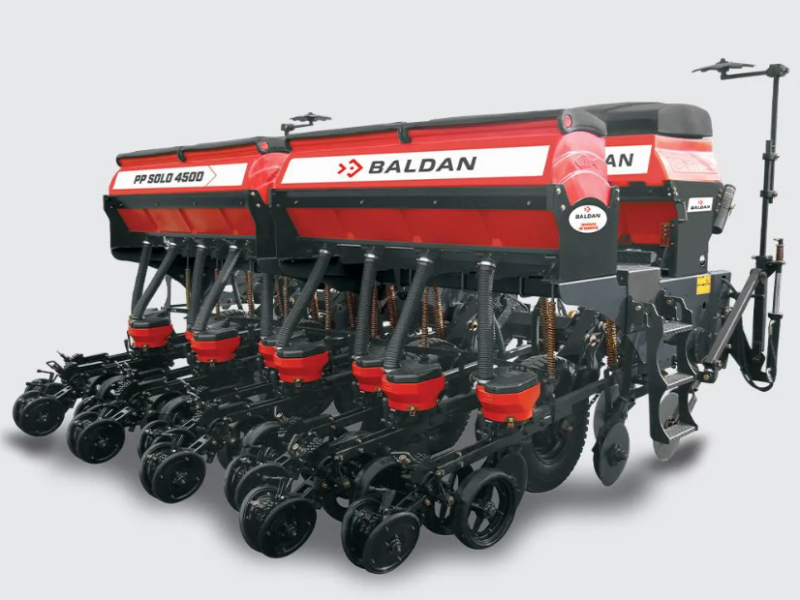

PPS Planter - Seed Drill
Technical Specifications
| Minimum spacing between lines | 415mm |
| Minimum spacing between wheels | 450mm |
| Working depth | 0-120mm |
| Fertilizer application range | 57 – 1700 Kg/Ha |
| Wheels set | Military 7.0x16x10L |
| Height | 2000mm |
| Model | No. Lines | Useful width (mm) | Working width (mm) | Total width (mm) |
Fertilizer tank capacity (L) | 3rd Seed Box capacity (L) |
No. Wheels | Approx. weight (Kg) | Tractor power(Hp) | |
|---|---|---|---|---|---|---|---|---|---|---|
| Plastic Hooper | Metalic Hooper | |||||||||
| PPS 3rd Seed Box 4000 |
8 | 3390 | 3800 | *4300 | 1240 | 1400 | 810 | 2 | 3450 | **90-100 |
| PPS 3rd Seed Box 4500 |
10 | 4060 | 4480 | *5000 | 1500 | 1750 | 972 | 4 | 4365 | **100-110 |
| PPS 3rd Seed Box 5000 |
12 | 4940 | 5350 | *6000 | 1860 | 2100 | 1140 | 4 | 5300 | **120-150 |
| PPS 3rd Seed Box 5500 |
13 | 5400 | 6300 | *6500 | 1860 | 2100 | 1296 | 4 | 5820 | **130-160 |
| PPS 3rd Seed Box 6500 |
15 | 6300 | 6715 | *7300 | 2250 | 2600 | 1458 | 6 | 8200 | **160-190 |
| PPS 3rd Seed Box 7500 | 17 | 7200 | 7615 | *8200 | 2610 | 3000 | 1620 | 6 | 8480 | **170-200 |
(*) The dimensions of the overall width (mm) comprise the seeder with line marker. The seeder without line marker should be reduced to 200 mm in dimensions.
(**) Approximate Power (hp) depends on normal situations for planting may be variations according to the soil type, topography, etc.
Row Spacing
| Model | Nr. of Rows | Spacing (mm) |
| 4000 | 4 | 800/900/1000 |
| 5 | 700/800 | |
| 6 | 500/550 | |
| 7 | 500/550 | |
| 8 | *415/450 | |
| 9 | *415 |
| Model | Nr. of Rows | Spacing (mm) |
| 4500 | 5 | 900/1000 |
| 6 | 550/800 | |
| 7 | 600/650 | |
| 8 | 500/550 | |
| 9 | *415/450/500 | |
| 10 | *415/*430/450 |
| Model | Nr. of Rows | Spacing (mm) |
| 5000 | 6 | *800/850/900/950 |
| 7 | 700/750/800 | |
| 8 | **550 | |
| 9 | 500/550/600 | |
| 10 | *415/450/**550 | |
| 11 | *415/450/500 | |
| 12 | 415/430/450 | |
| 13 | *400 |
| Model | Nr. of Rows | Spacing (mm) |
| 5500 | 7 | *800/850/900 |
| 9 | 600/650 | |
| 10 | 500/550 | |
| 11 | 500/550 | |
| 12 | *415/500 | |
| 13 | *415/*430/450 |
| Model | Nr. of Rows | Spacing (mm) |
| 6500 | 8 | 800/900 |
| 9 | 790 | |
| 10 | *600 | |
| 11 | 600 | |
| 12 | *500/550 | |
| 14 | 485 | |
| 15 | *415/*430/450 |
| Model | Nr. of Rows | Spacing (mm) |
| 7500 | 9 | 800/850/900 |
| 10 | *750/800 | |
| 11 | *600/650/700 | |
| 12 | *600/650 | |
| 13 | 600 | |
| 14 | 500/550 | |
| 15 | *500 | |
| 17 | *415/*435/450 |
(*) Spacing marked with an asterisk might have an alteration up to 25mm at any row.
(**) Spacing marked with an asterisk might have an alteration up to 30mm at any row.
