DCF-R Spreader Fertilizer

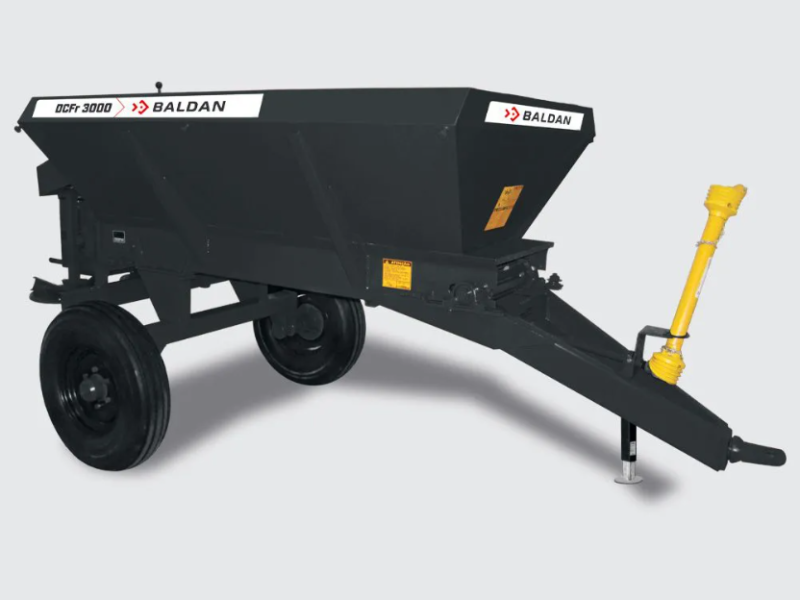

The BALDAN DCF-R Reducer-driven Lime and Fertilizer Distributor is used in the distribution of limestone for liming effect. The DCF-R has reducer drive system, with deflector optional baffle, guiding box and deflector with canvas.
Technical Specifications
| Lime Discharge (Kg/ha) | 12.000 |
| Distribution Width (mts) | 6 to 10 |
| RPM on PTO | 540 |
| Ground Wheel DCF-R 3000 | Simple – 2 Tyres |
| Ground Wheel DCF-R 6000 / 8000 | Tandem – 4 Tyres |
| Model | Load Capacity (m³) |
Total Length (mm) |
Total Width (mm) |
Total Height (mm) |
Approx. Weight (mm) |
Tractor Power (Hp) |
| DCF 3000 | 1,60 | 3843 | 1760 | 1710 | 850 | 50-70 |
| DCF 6000 | 2,80 | 4561 | 1886 | 1816 | 1203 | 75-90 |
| DCF 8000 | 3,80 | 4561 | 1886 | 2032 | 1325 | 90-100 |
